【Article】-Raw materials preparationequip

LXZ Continuous wine press

Pubdate:2016-08-10 00:49:21     Aditor:admin     Click times:742

Technical parameters
Type LXZ-5 LXZ-10 LXZ-20 LXZ-40 NOTE
Caoacity(m3/h) 5 10 20 40
Power(kw) 5.5 7.5 11 15
Voltage(v) 380 380 380 380

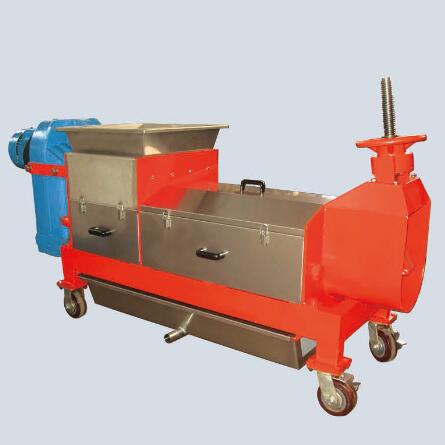

LXZ Continuous wine press(更新).jpg

  LXZ continuous screw press employs scew blades as the main axis rotates and pushes raw materials into press.

  Users can adjust pressure of press by changing the size of aperture hole manually or by hydraulic drive automatically.

  The form of structure:

  LXZ continuous screw press is composed of decelerater,dynamic bos,feeding shuttle,screw crusher shaft,filter mesh,residue-discharge door,pressure adjustor and power fittings.All the components that are in direct-contact with juice materials are made of stainless steel.
