| Specification | Layers of filter mesh | Filtration pressure(MPa) | filter media(μm) | Flow Rate(t/h) |
|---|---|---|---|---|
| Diameter150 | 10 | 0.25-4 | 0.8 | 1.2-2 |
| Diameter200 | 10 | 0.25-4 | 0.8 | 2.5 |
| Diameter300 | 10 | 0.25-4 | 0.8 | 6 |
| 150x150 | 10 | 0.25-4 | 0.8 | 2.5 |
| 200x200 | 10 | 0.25-4 | 0.8 | 4 |
| 400x400 | 10 | 0.25-4 | 0.8 | 2 |
| 400x400 | 20 | 0.25-4 | 0.8 | 4 |
| 400x400 | 40 | 0.25-4 | 0.8 | 8 |
| 400x400 | 60 | 0.25-4 | 0.8 | 12 |
| 600x600 | 20 | 0.25-4 | 0.8 | 9 |
| 600x600 | 40 | 0.25-4 | 0.8 | 18 |
| 600x600 | 60 | 0.25-4 | 0.8 | 27 |

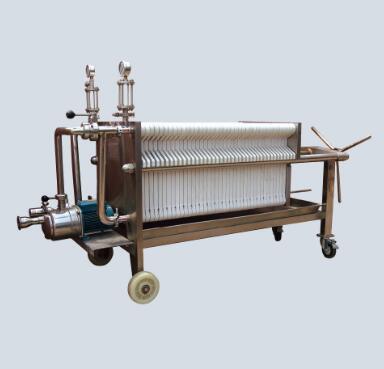

The stainless steel tangential horizontal BAS plate filter is used to filter low density liquid (no more then 5%)with less residue.
The filtering process is poetated in the closed position.
Users can add or reduce layers of filter mesh,choose various types of filter board with diffterent density according to the demand of flow rate during producing process.There also has bacteria removal filter board to kill bateria.
BAS plate filter is convenient to operate in all applications.
BAS plate filter is wildly applied in winemaking,cider,spirit making,food,drink,dairy,and chemical industry for clarifying,killing bacteria,disposal,etc.
